Custom Batter's Eye Screens for Baseball Facilities
A batter’s eye screen is a dark, uniform mesh backdrop positioned in or beyond center field to give hitters a cleaner view of the pitched ball. LonaTarp manufactures PVC-coated polyester mesh and fabricates finished panels for baseball facilities, contractors, equipment suppliers and distributors. Each baseball batter’s eye screen is made from an approved sightline, panel schedule, supporting structure and attachment plan—not from a generic field size.
We produce to order and do not hold single-screen retail stock. The standard material-basis MOQ is 5,000 m², which can support one large facility program or compatible multi-field orders. Buyers can approve the mesh, color, edge construction and a finished sample before bulk production.
Define the Sightline Before Setting the Screen Size
A batter’s eye screen should be sized from the hitter’s sightline, not from a generic field dimension. Start with the view from home plate toward the pitcher’s release area and the center-field background, then mark posts, gates, scoreboards, cameras, viewing openings and any obstruction that affects the usable screen area.
There is no fixed set of batter’s eye dimensions for every facility. Each baseball batter’s eye screen should be confirmed by field geometry, approved sightline, supporting fence or frame, wind exposure and installation method. For a large batter’s eye windscreen, panels should be divided at structural supports so joints do not create distracting light gaps in the visual area.

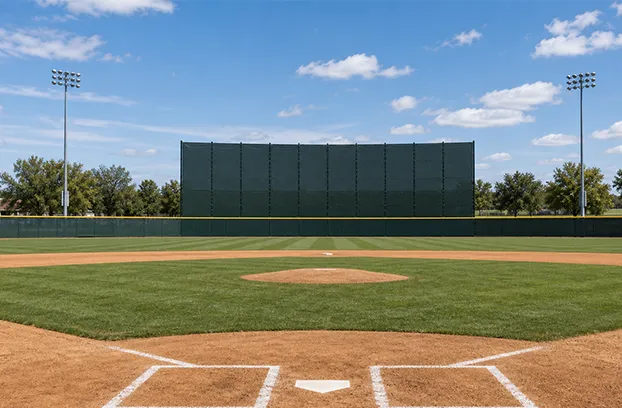

Center-Field Sightline View

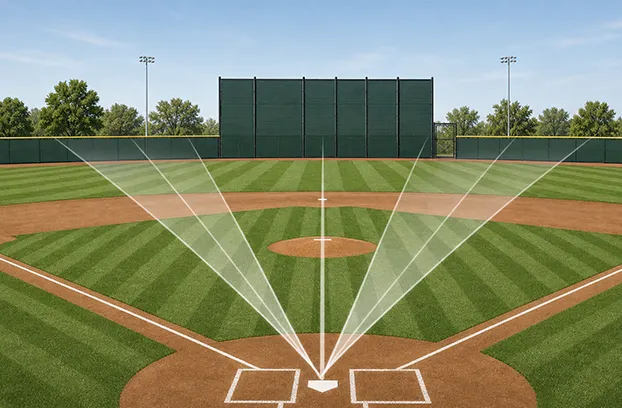

Sightline and Panel Layout

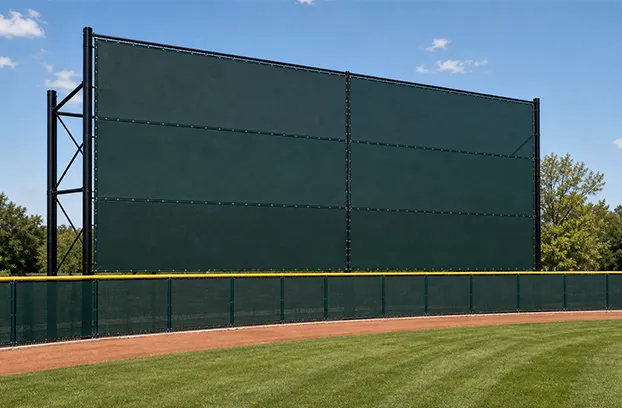

Finished Batter's Eye Windscreen Installation
Match PVC-Coated Mesh to the Visual and Wind Environment
Published manufacturer specifications show that an open PVC- or vinyl-coated polyester mesh around 9–10 oz/yd² (about 305–339 gsm) is a common market benchmark for a custom batter’s eye screen. It can provide a dark visual field while allowing more air to pass than a solid sheet. The mesh opening, coating, color and finished shade level still need to be confirmed on the selected sample.
A batter’s eye windscreen in a more exposed location may require a stronger construction. CoverSports publishes a 16 oz/yd² coated polyester mesh option, approximately 543 gsm, for higher-wind or higher-durability applications. This is a useful comparison point, but heavier fabric does not automatically reduce wind load or make an existing fence suitable. Screen height, post condition, fence wire, support spacing, attachment layout and local wind conditions remain project inputs.
| Project Condition | Market Material Benchmark | Performance Task | Must Be Confirmed |
|---|---|---|---|
| Standard fence-mounted visual backdrop | 9-10 oz/yd² coated polyester open mesh, about 305-339 gsm | Uniform dark background, airflow, manageable panels and print compatibility | Mesh opening, shade/closure target, color, fence condition and approved sample |
| More exposed or high-use installation | Up to 16 oz/yd² coated polyester mesh, about 543 gsm, as a heavier market option | Higher fabric strength and durability without assuming a lower structural load | Wind exposure, panel height, posts/frame, fixing pattern and engineering responsibility |
Not sure what you need? Send your center-field layout, screen size, mesh preference and support details. We’ll help you choose the right batter’s eye screen solution.
Build Finished Panels Around the Supporting Structure
A batter’s eye windscreen should be fabricated around the actual fence or support frame. The center mesh, reinforced perimeter and attachment points do different jobs, so the panel layout must match the structure instead of relying only on one overall size.
Before production, confirm the hem or welded-edge construction, reinforcement width, eyelet material and spacing, corner treatment, center support and any planned seasonal removal. Tall panels may need a center lacing line or another support arrangement to reduce movement and keep the visual area stable.
LonaTarp supplies finished PVC-coated mesh panels according to the approved specification. Steel posts, concrete foundations, retractable winches, structural calculations and field installation are not included unless they are separately defined and accepted.
Confirm Color, Sample and Quotation Details
Dark green, dark blue or black are common color directions for a batter’s eye screen, but the final color should be approved against the actual center-field environment. The goal is a consistent background in the hitter’s sightline, not simply the darkest fabric available.
If artwork or a facility mark is required, keep it outside the critical visual area unless another layout is approved. Mesh opening, print process, viewing distance, panel joints and reinforced edges can all affect the finished result, so print compatibility should be checked on the selected mesh.
For a comparable quotation, send the facility name, center-field elevation, required visual area, batter’s eye dimensions, finished panel sizes, panel codes, fence or frame details, site photos, mesh preference, color, edge finish, eyelet or lacing plan, artwork, quantity, packing requirement and target market.
LonaTarp will review the baseball batter’s eye screen as a made-to-order B2B project and coordinate PVC-coated mesh production, cutting, edge reinforcement, eyelets, sample approval and export packing under one confirmed specification.
FAQ
What affects the project price?
The finished area, mesh construction, number of panel sizes, reinforced edges, eyelet or lacing layout, graphics, sample work, inspection and packing all affect the quotation. Quotes are only comparable when suppliers receive the same drawing and material target.
Can you supply a complete structural system?
Our standard scope is the PVC-coated mesh and fabricated screen panels. Structural frames, foundations, retractable hardware, engineering and field installation must be confirmed separately before they appear in the supply agreement.
What should be approved before bulk production?
Approve the material sample, color, finished panel size, panel split, edge construction, attachment points, artwork proof, panel labels and packing method. Performance claims should refer to the agreed specification, sample, test method or project document.
How do we confirm the correct batter's eye screen size?
The screen size should be confirmed from the hitter’s sightline, center-field elevation, supporting structure and required visual area. There is no universal batter’s eye dimension for every facility, so drawings and site photos are recommended before quotation.
Which mesh is suitable for a batter's eye windscreen?
Most projects need a dark PVC-coated mesh that provides a uniform visual background while still allowing airflow. The final mesh should be selected according to shade level, wind exposure, panel height, fence condition and sample approval.
Can the screen be divided into multiple panels?
Yes. Large batter’s eye screens are usually divided at structural supports for easier fabrication, packing, installation and replacement. Panel joints should be planned carefully so they do not create light gaps in the hitter’s sightline.
Can logos or facility marks be printed on the screen?
Yes, but logos should normally stay outside the critical visual area unless the facility approves another layout. Mesh opening, viewing distance, print method and reinforced edges can all affect the final graphic result.
