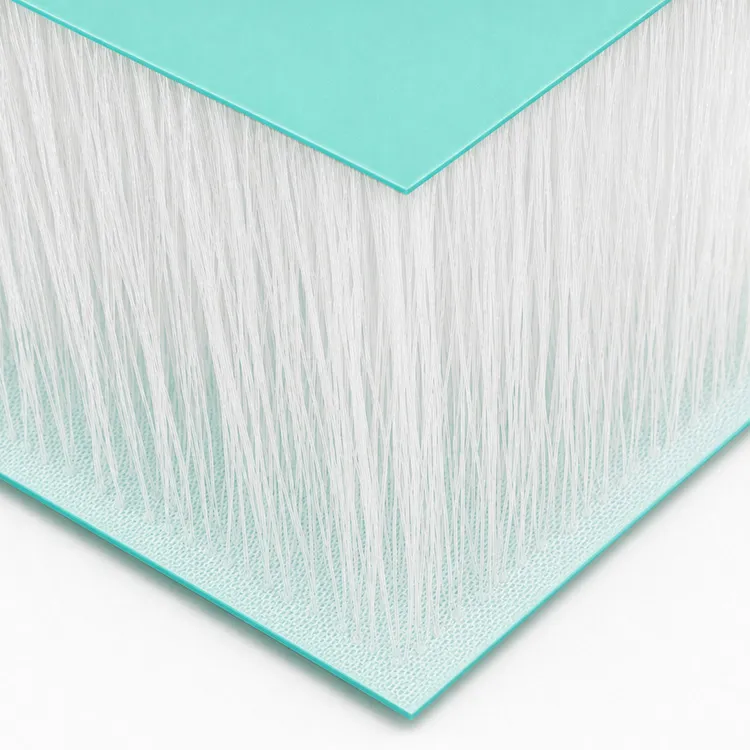

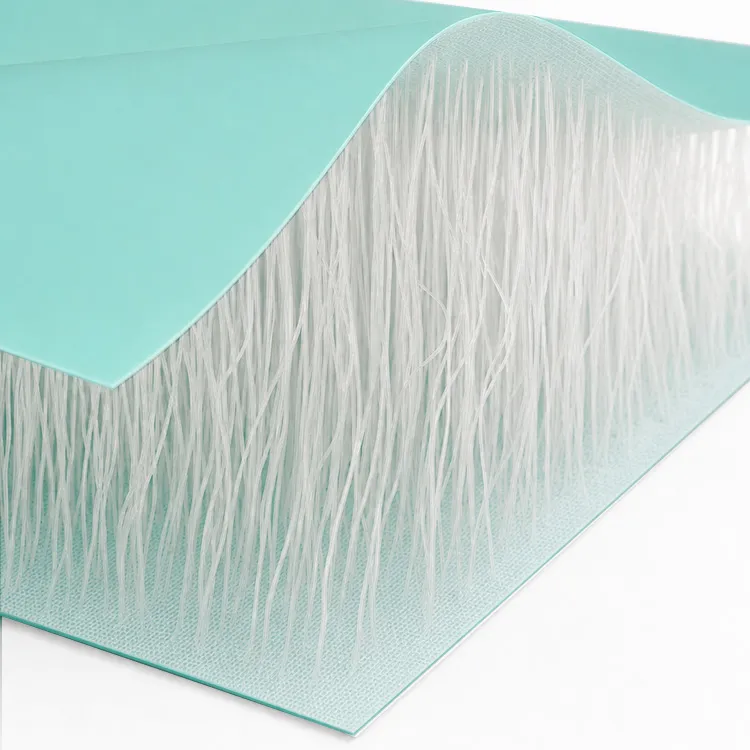

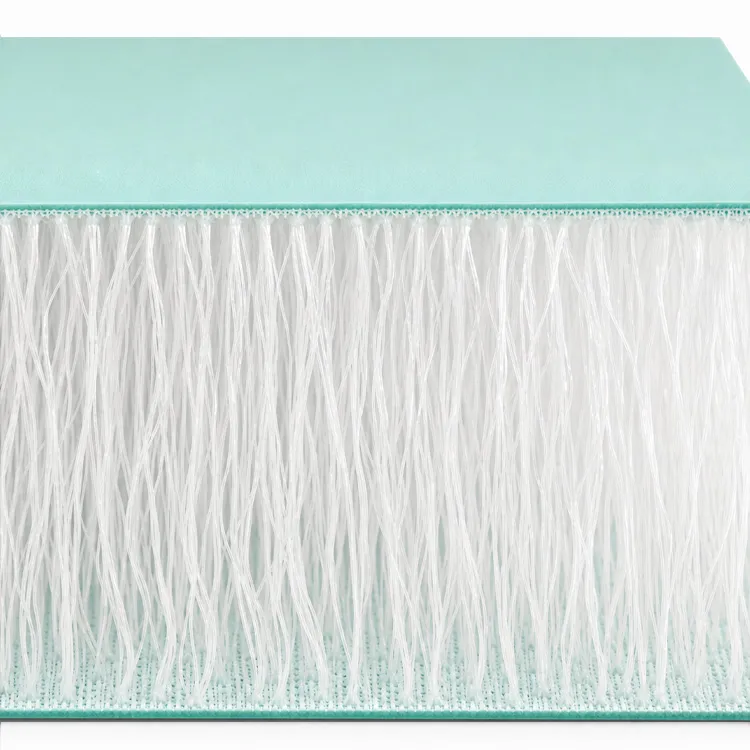

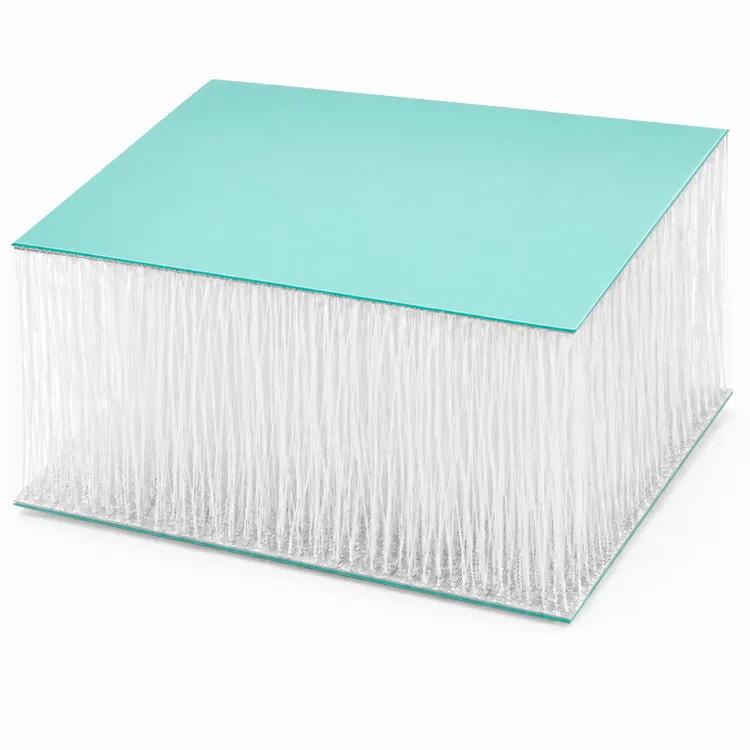

30cm 1000D Woven Drop Stitch Fabric
This 30 cm woven drop stitch fabric is a deep-chamber, 2.03 m-wide construction using 1000D × 1000D yarns at a nominal 2200 GSM. It is intended for engineered inflatable panels where depth, edge restraint and load distribution must be considered together.
Some buyers search for 1000 denier reinforced drop stitch. For this model, 1000D identifies the yarn construction; “reinforced” must be tied to the actual face, edge and finished assembly rather than used as an unsupported pressure claim.
Ordering Specification
| Item | Approved Ordering Basis |
|---|---|
| Finished height | 30 cm |
| Yarn structure | 1000D × 1000D |
| Nominal weight | 2200 GSM |
| Roll width | 2.03 m |
| Surface pattern | Dot |
| PVC formulation | Airtight |
| Color | Batch color set by approved reference |
| Printing | Not listed as standard |
| Reference use | Deep inflatable panels developed from drawings |
| B2B MOQ | 5,000 m² |
Treat 30 cm as a Structural System
A chamber twice as deep as a 15 cm panel changes sidewall leverage, valve access, edge-band geometry and deflection. Provide the support points, operating orientation and load case before selecting a seam layout.
The 2.03 m width can reduce joins, but large parts need controlled handling. Confirm cutting capacity, lifting method, marking and pack size at the same time as the material order.
Use Full-Scale Pressure and Deflection Criteria
Do not derive pressure from 2200 GSM or 1000D. Approve a full-size or representative assembly at the target pressure, record hold time and allowable loss, and measure shape or deflection at defined locations.
Where a failure could affect people or valuable equipment, the buyer’s engineer should approve safety factors, supports and operating limits. Material supply data is not a substitute for finished-system validation.
Place 30cm 1000D Woven Drop Stitch Fabric beside the other heights and constructions in our Drop Stitch Fabrics collection before final selection.
FAQ
Is 30 cm simply a thicker 15 cm product?
No. The deeper chamber changes geometry and load response, so edge design and testing must be developed for the actual assembly.
Does 1000 denier mean reinforced?
It describes yarn linear density. Reinforcement claims require a defined layer or component and comparable test evidence.
Can a wide roll be supplied as marked cut parts?
Yes, after the drawing, tolerance, orientation, identification and packing sequence have been approved.
How should a trial proceed before 5,000 m²?
Build and test a representative component, document acceptance criteria, then release the standard B2B production quantity.
Send the Load Case, Not Only the Height
Provide the deep-panel drawing, supports, target pressure, allowable deflection, equipment limits and order volume. We will flag the material and fabrication checks needed before sampling.
